oil and gas field equipement
oil and gas field equipement

World Class API 6A Manufacturer

oil and gas equipement api 6a workshop

ON SITE QUALITY CONTROL

Learn More

JMP PLANT

All our products are designed in Texas and manufactured in JMP China.

Learn More

API 6A VALVE SERIES

We proudly design and manufacture API 6A standard gate valves. Our valves lineup ranges from 1 to 7 inches, and 5M to 15M PSI pressure rating. They are designed and built to suit any hydrofracturing needs all over North America.

Learn More

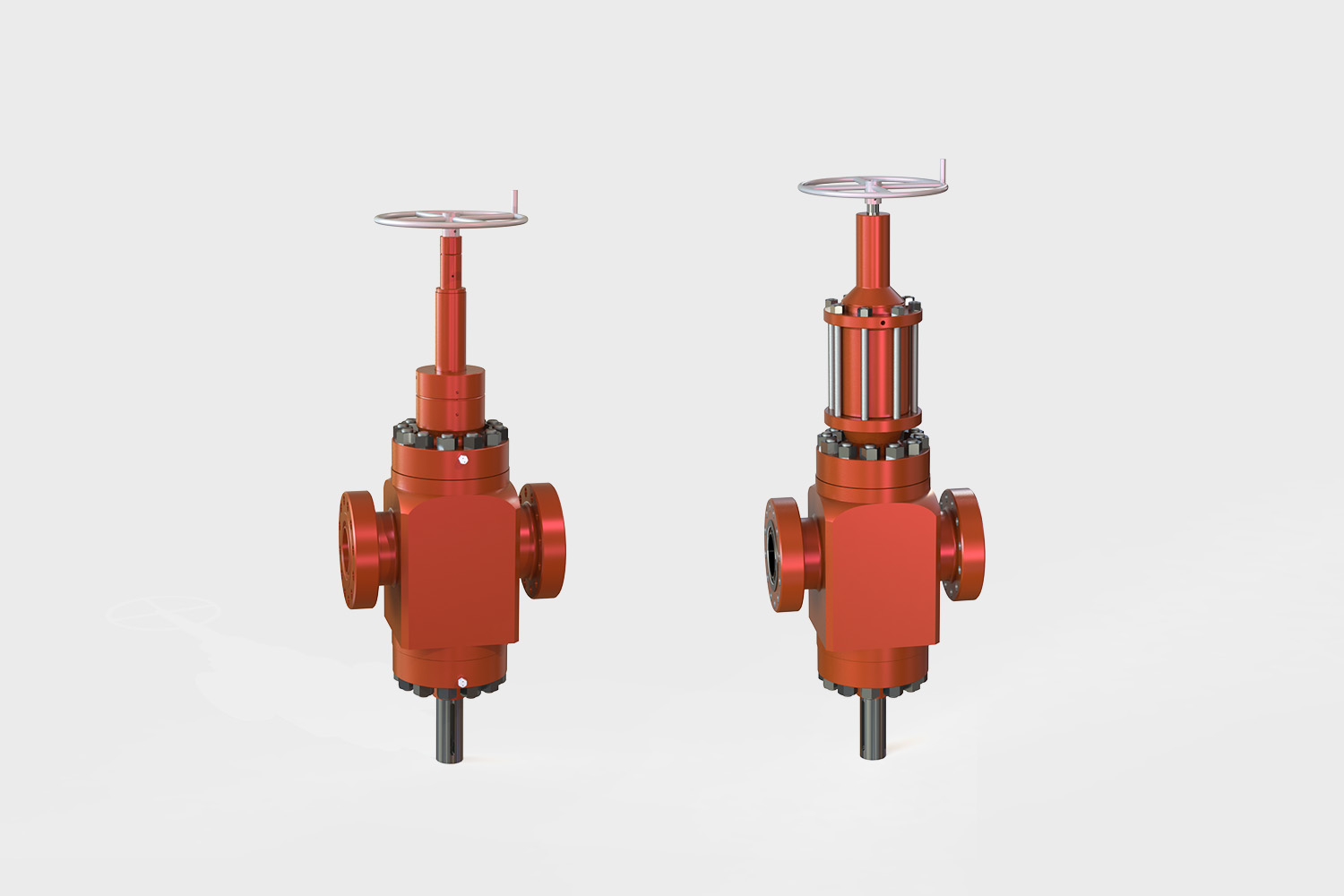

API 6A FSLR Style Gate Valves 5-10 5-15, 7-10, 7-15

API Spec 6A

FLSR Style Gate Valves

Innovatively designed to suit tough high pressure working conditions. Our advanced manufacture process ensures high precision and long term reliability.

  • Types: hydraulic, ball screw
  • Sizes: 5-1/8" or 7-1/16"
  • Pressure: 10,000 or 15,000 psi
Learn more

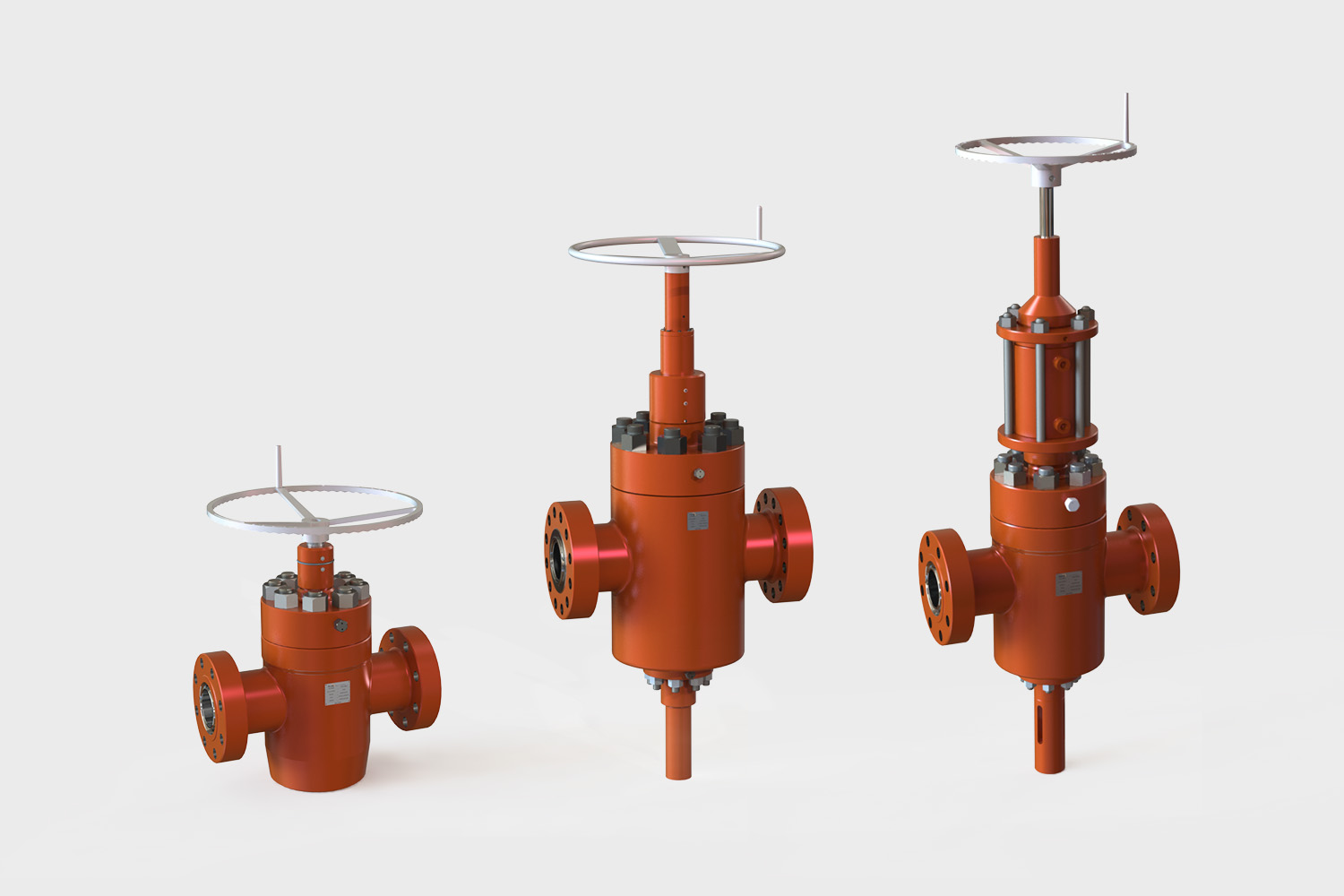

API 6A FC Style Gate Valves Ball Screw, Bearing, Hydraulic, up to 15M

API Spec 6A

FC Style Gate Valves

JMP FC valves are re-engineered from the famous Cameron®-Style FC Gate Valves for enhanced service durability and performance.

  • Optimization Design for better performance
  • Optional Trim level for harsh service condition
  • Sour Gas Level: 0.5, 1.5, NL
  • Size: 2-1/16", 3-1/16”, 4-1/16”
Learn more

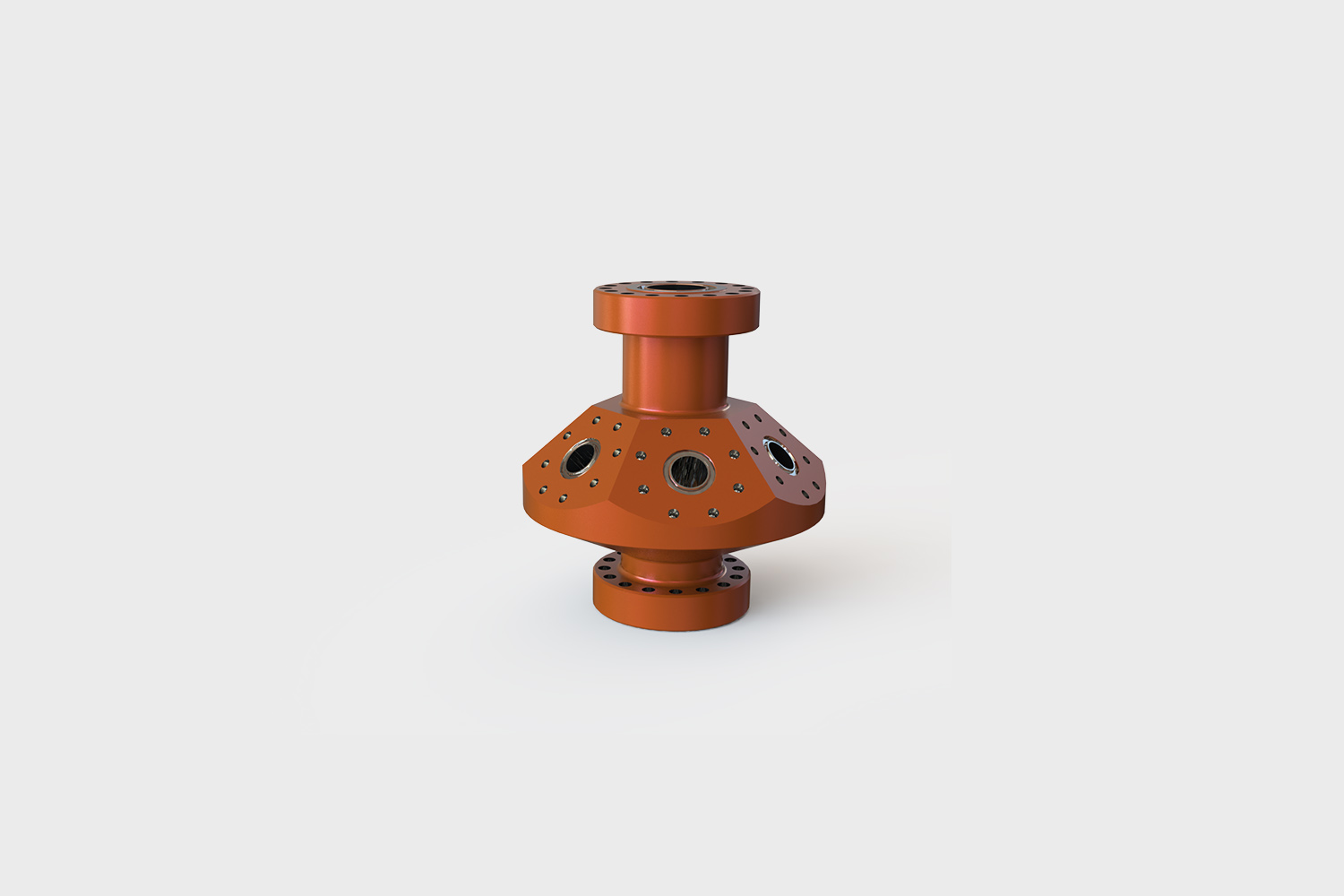

API 6A Frac Heads - RAM Series

API Spec 6A

RAM Series Frac Heads

JMP manufactures goat heads of various sizes to fit your frac completion. These field-proven frac heads are designed and built to last under high pressure.

Learn more

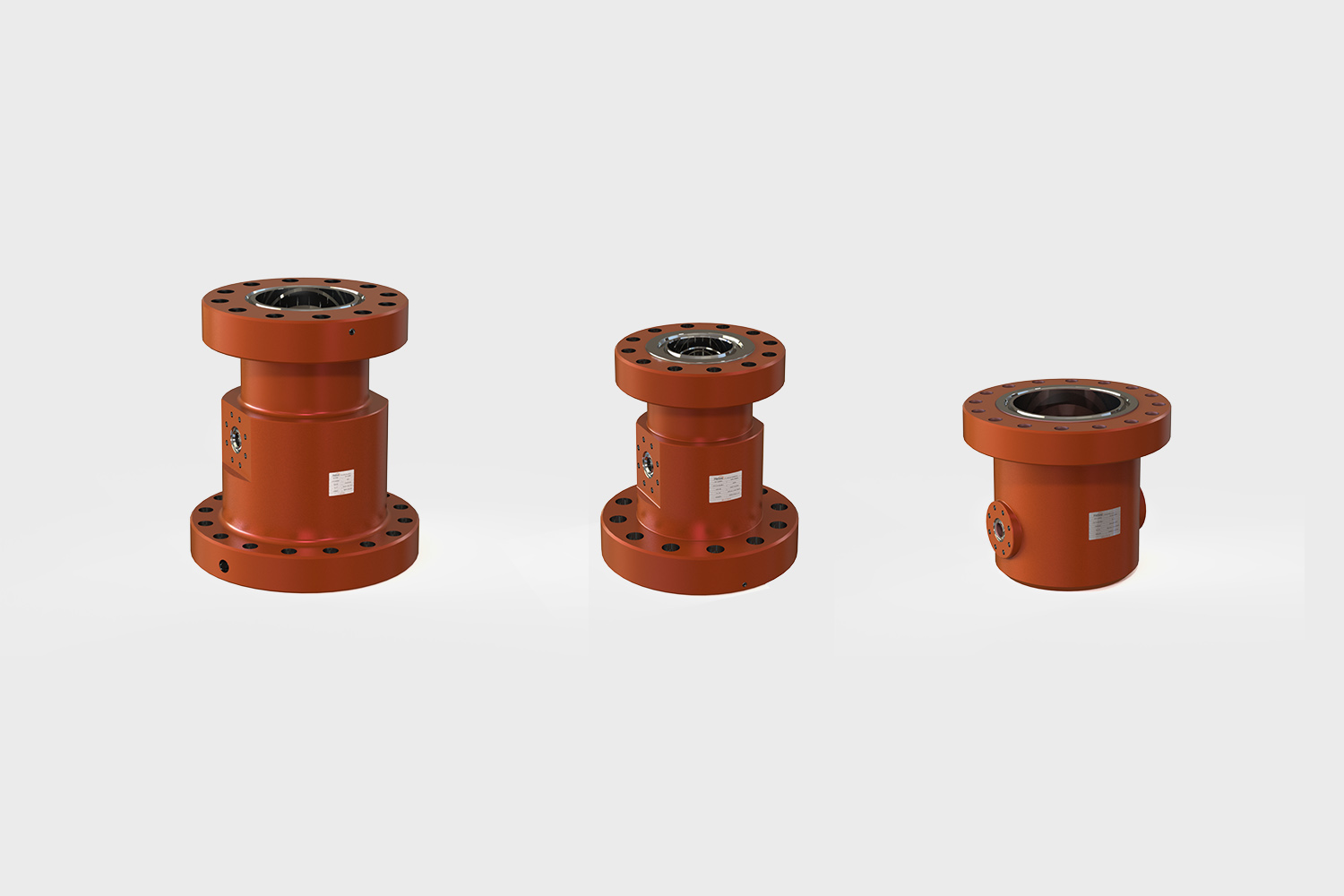

Casing Heads, Casing Spools and Tubing Spools

API Spec 6A

Casing Heads, Casing Spools and Tubing Spools

High quality well head spools give you a peace of mind. JMP manufactures ultra durable wellhead casing spools, tubing spools and casing heads that fit your application.

Learn more

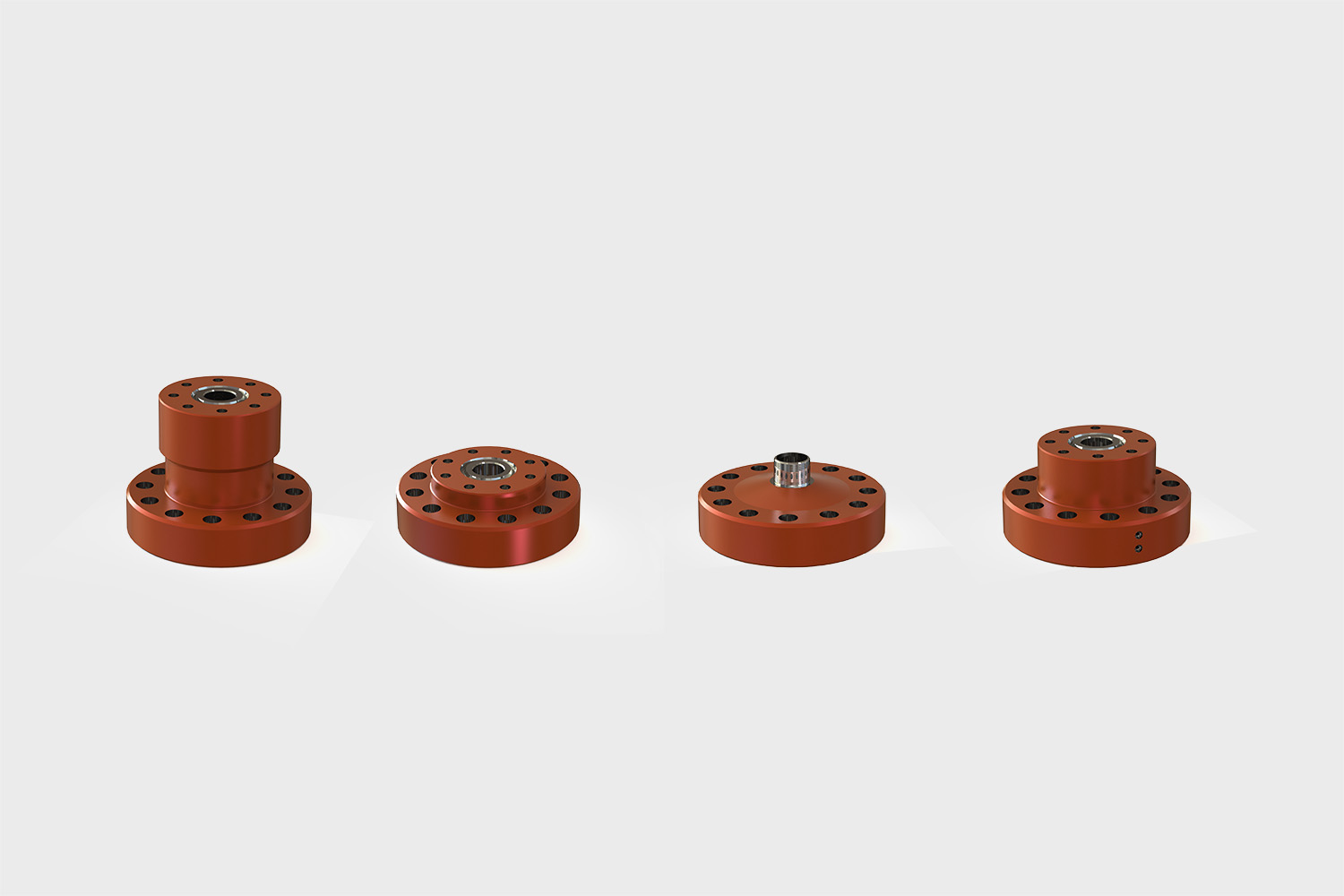

API 6A Tubing Head Adapters for Wellhead Completion

API 6A

Tubing Head Adapters

For a reliable completion that lasts for decades.

  • High quality adapters for long lasting well completion
  • B-1, BO2, B2P and A5P styles
  • Compatible with wide range of spools and hangers
Learn more
Casing Hangers and Secondary Seals - API 6A Wellhead Components

API Standard Wellhead

Casing Hangers and Secondary Seals

Long lasting hanger and seal system that provides positive annular sealing with minimum number of parts to worry about.

  • Durable design with heavy duty latching mechanism
  • Minimum maintenance required due to fewer parts
  • Self energized by its own weight
Learn more

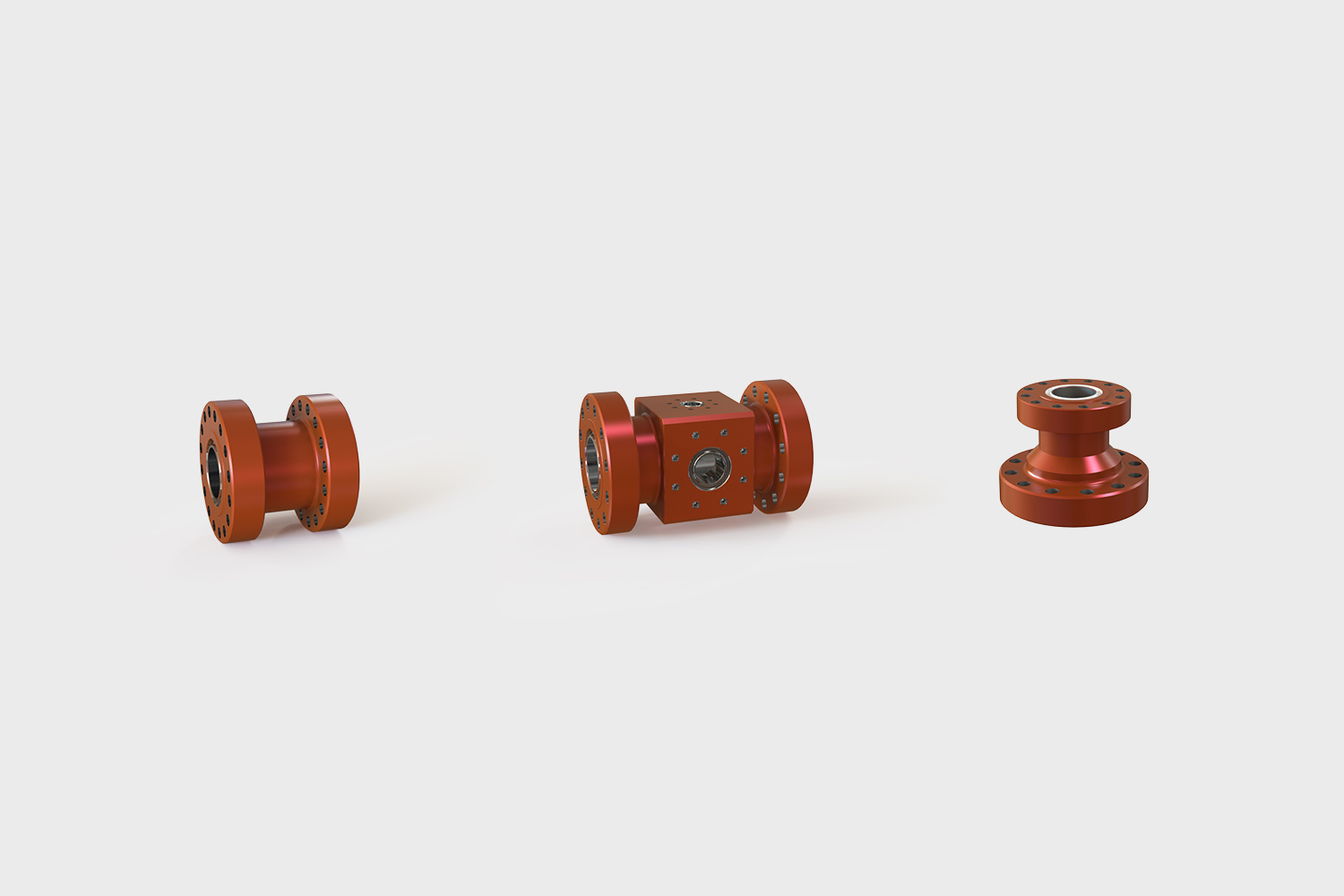

API 6A Type 6B/6BX Spools, Adapter Spools, Spacer, Drilling Spools

API Spec 6A Type 6B/6BX

Drilling Spools, Adapter and Spacer Spools

JMP engineers and manufacture quality API 6A spec spools for your connection needs.

  • Type: Spacer Spool, Adapter Spool, Drilling Spool
  • Spec: PSL1 ~ PSL3
  • Size: 1-13/16” to 21-1/4”
  • Pressure: 10,000 psi, 15,000 psi
Learn more

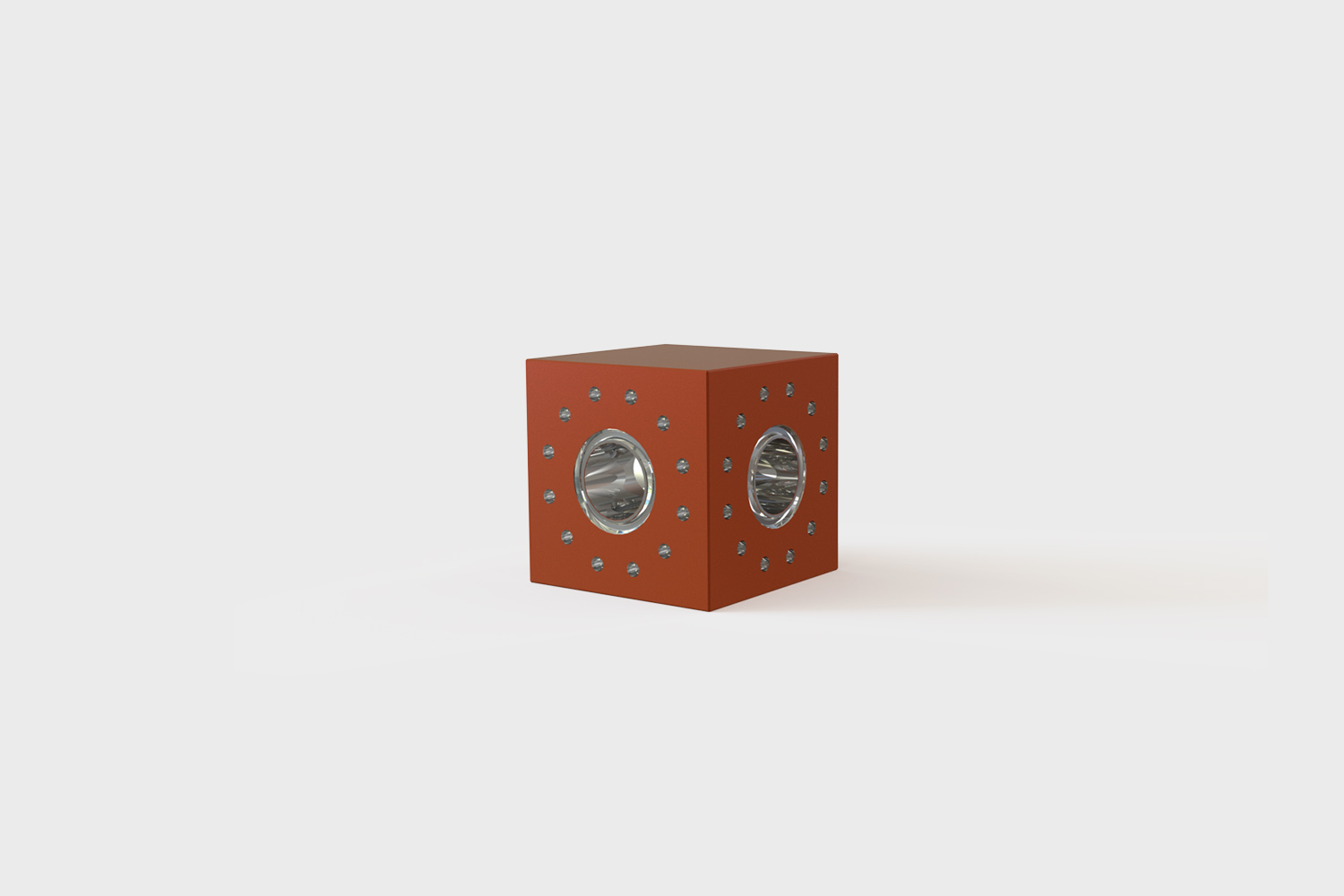

API 6A Crosses and Tees, Studded Blocks

API Spec 6A Type 6B/6BX

Crosses and Tees

Simple and reliable. High quality studded block crosses and tees are available at competitive prices.

  • Material Level: DD, EE, FF
  • Spec: PSL1 ~ PSL3
  • Size: 1-13/16” to 7-1/16”
  • Pressure: 5,000 psi, 10,000 psi, 15,000 psi, 20,000 psi
Learn more

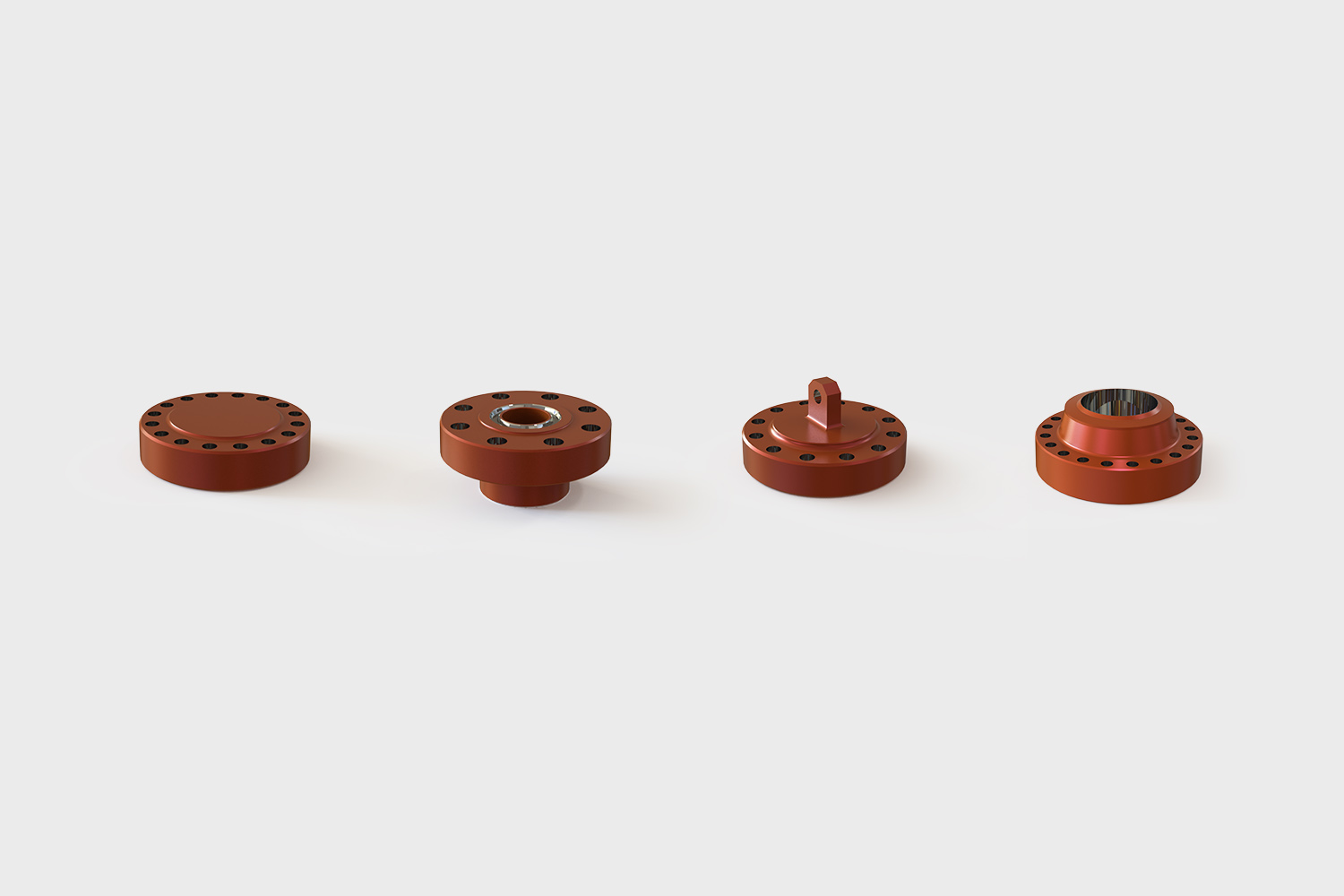

API 6A Type 6B/6BX Flanges

API Spec 6A Type 6B/6BX

Flanges

Designed by JMP engineers and manufactured by one of the largest flange workshops in the world, JMP flanges exceed expectations in all aspects.

  • Types: Blind, Target, Testing, Weld-Neck
  • Sizes: 1-13/16” to 21-1/4”
  • Pressure: 2,000 to 20,000 PSI
Learn more
